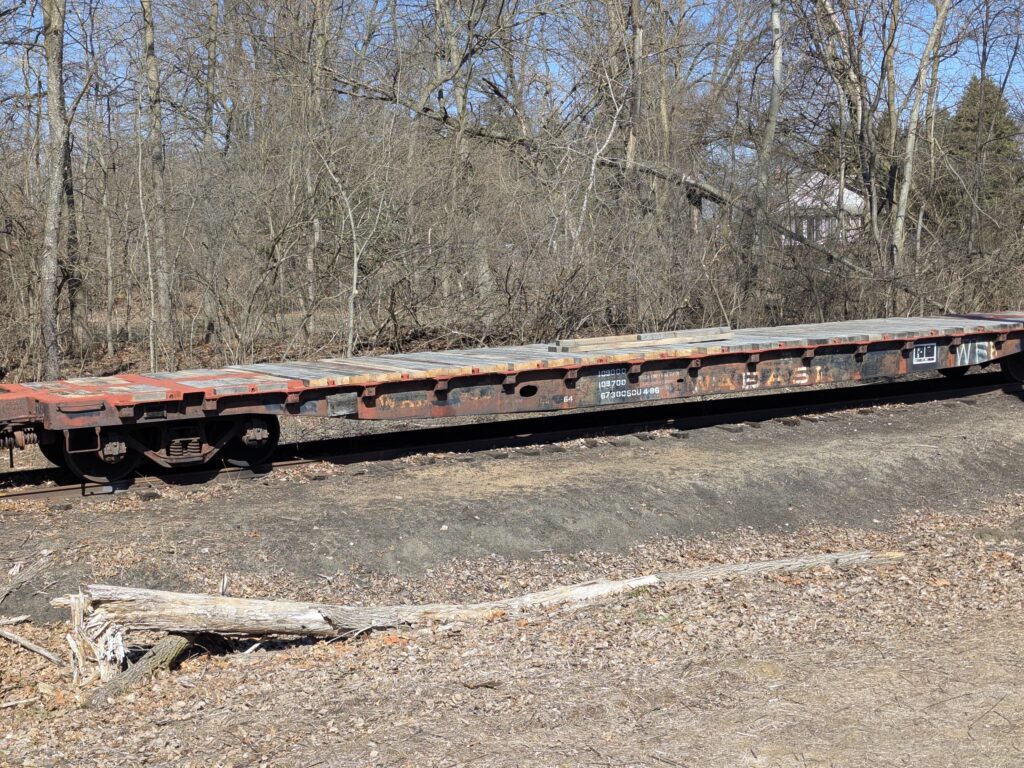

Wabash 553, 1959
Builder: Wabash Railroad Decatur Shops (using General Steel Castings one-piece cast steel body and frame)
Type: 53′ general-service flat.
Original Use: General heavy freight including machinery, steel, lumber, pipe, and oversized loads.
Build and Early Service
In 1959, the Wabash Railroad assembled car 553 (and its sisters) in its own Decatur, Illinois car shops using a rugged one-piece cast steel body and underframe casting supplied by General Steel Castings (GSC). This advanced post-WWII design delivered exceptional strength, rigidity, and reduced maintenance compared with conventional riveted or fabricated frames.
The Wabash Railroad—famous for its “Follow the Flag” slogan—operated a 2,500-mile system linking Chicago, St. Louis, Toledo, Detroit, Kansas City, and points across the Midwest. By the mid-1950s, Wabash was an early and enthusiastic adopter of piggyback service to compete with growing highway trucking. The railroad purchased its own fleet of highway trailers and outfitted new GSC flats (including the 100–249 and related series) with reinforced decking, trailer securement anchors, and end-of-car hitches. Car 553 and its classmates were among the first purpose-equipped TOFC flats delivered from Decatur in 1955, ready to carry 32′, 35′, and eventually 40′ trailers.
The cars featured a full wood deck for load distribution and easy field repairs, integral stake pockets, multiple load tie-down appliances, and spring-cushion draft gear. Typical assignments on Wabash routes included:
- Chicago–Decatur–St. Louis main line (the heart of Midwest TOFC traffic)
- Toledo–Detroit and Toledo–East St. Louis runs
- Detroit–Kansas City and Buffalo–Toledo–Chicago connections
- Branches serving factories, steel mills, lumber yards, and distribution centers
Service Life and Retirement
Wabash 553 provided reliable general-service duty through the 1960s and 1970s. Following the 1964 merger into the Norfolk & Western, many of the GSC flats (including ex-Wabash cars) received N&W black repaint with stacked lettering and continued in TOFC service or heavy general freight. The robust cast-steel frame allowed long life; some sisters remained active into the early Norfolk Southern era or were reassigned to maintenance-of-way or work-train duties.
In later years, 553 was used to move heavy diesel locomotive prime movers and other oversized shop loads to and from the Decatur shops. Eventually retired from revenue service, the car was sold to the proposed Ft. Jennings & Delphos Railroad. When those plans did not materialize, it was stored at the Toledo, Lake Erie & Western Railway and Museum site until formally donated by the individual who controlled it for the short line.
Preservation and Current Ownership

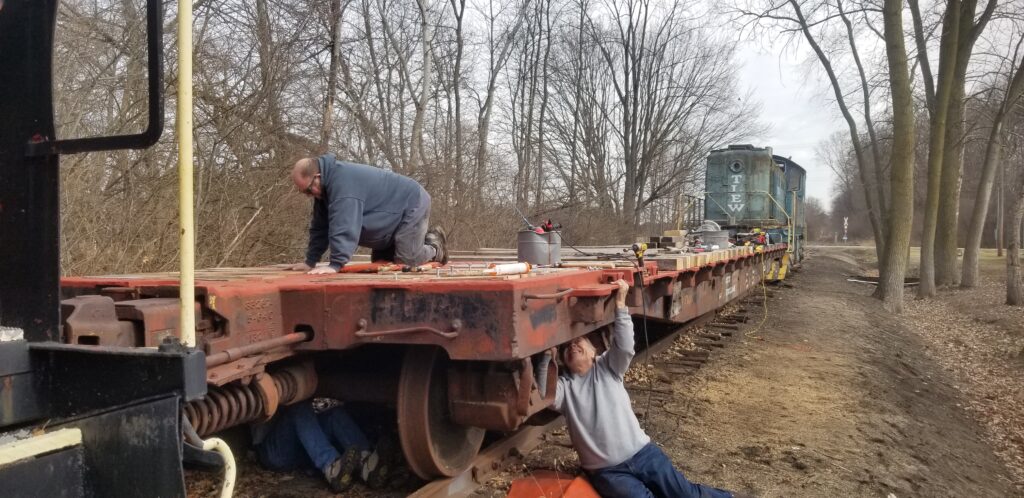

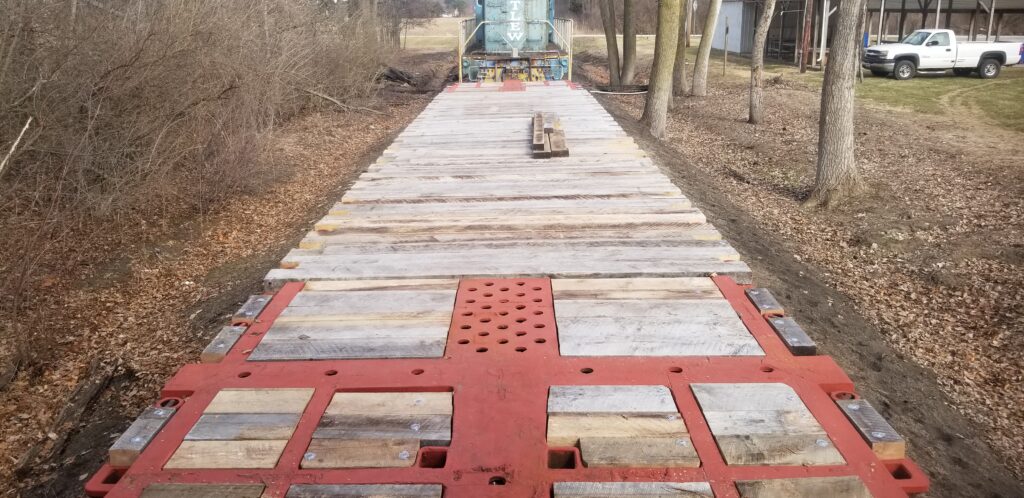

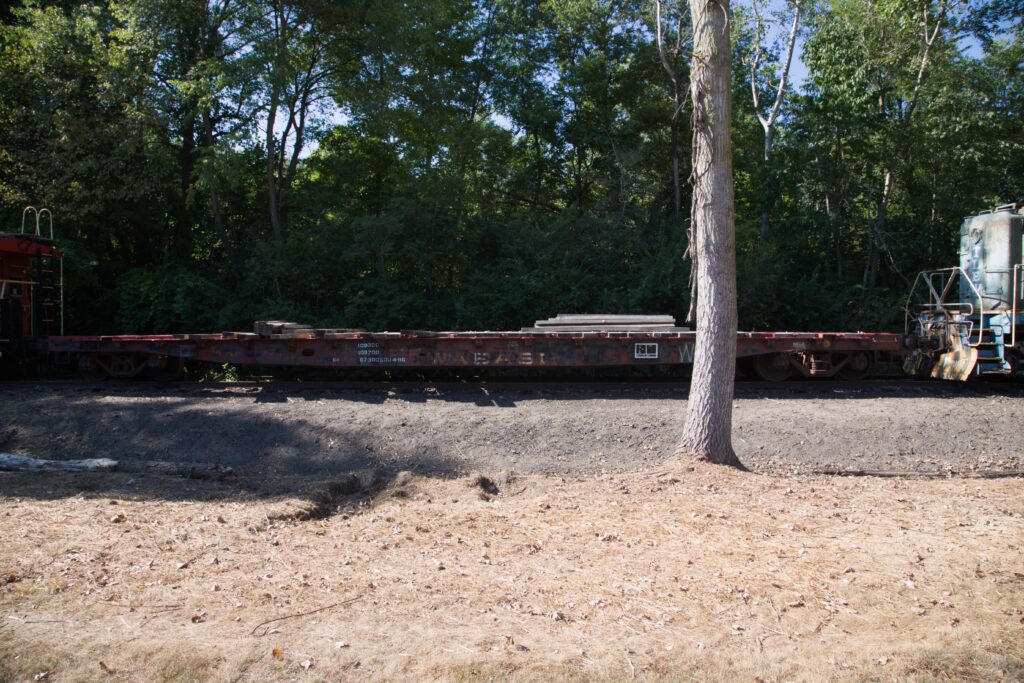

Wabash 553 is a prized artifact in the Toledo, Lake Erie & Western Railway and Museum (TLE&W) outdoor collection in Grand Rapids, Ohio. Volunteers are actively restoring the car, with major recent work focused on a full redecking using new timber to match the original wood-deck specification. The car remains on static display and serves as a tangible reminder of the railroad’s innovation in freight during the 1950s and self-sufficiency in building specialized equipment at the Decatur Shops.
Specifications
| Attribute | Details |
|---|---|
| Builder | Wabash Railroad Decatur Shops (General Steel Castings one-piece cast steel body & frame) |
| Built | July 1959 |
| Type | 53′ piggyback/TOFC flatcar (general-service flat with trailer loading equipment) |
| Length | 53 feet |
| Capacity | 50 tons |
| Construction | One-piece GSC cast steel body/frame; wood deck; integral stake pockets; load tie-down appliances; spring-cushion draft gear; trailer securement hitches and anchors |
| Reporting Mark / Number | WAB 553 (original); later N&W markings on some sisters |
| Original Operator | Wabash Railroad |
| Service History | General freight service 1959–1964 (Wabash); continued under N&W/NS into later decades; heavy shop moves in final revenue years |
| Features | Heavy-duty cast frame for intermodal and oversized loads; designed specifically for highway trailer transport in Wabash’s pioneering piggyback program |
| Acquisition | Donated to TLE&W after storage on museum grounds |
| Status | On outdoor static display; active volunteer restoration (full wood deck renewal completed or in progress) |
| Paint Scheme | Original Wabash brown with white lettering (1955–56 scheme) |
Collection Details
Preserved in the Toledo, Lake Erie & Western Railway and Museum outdoor collection
Accession: 2011.1.1 | Acquired: 2011 | Status: On Display
